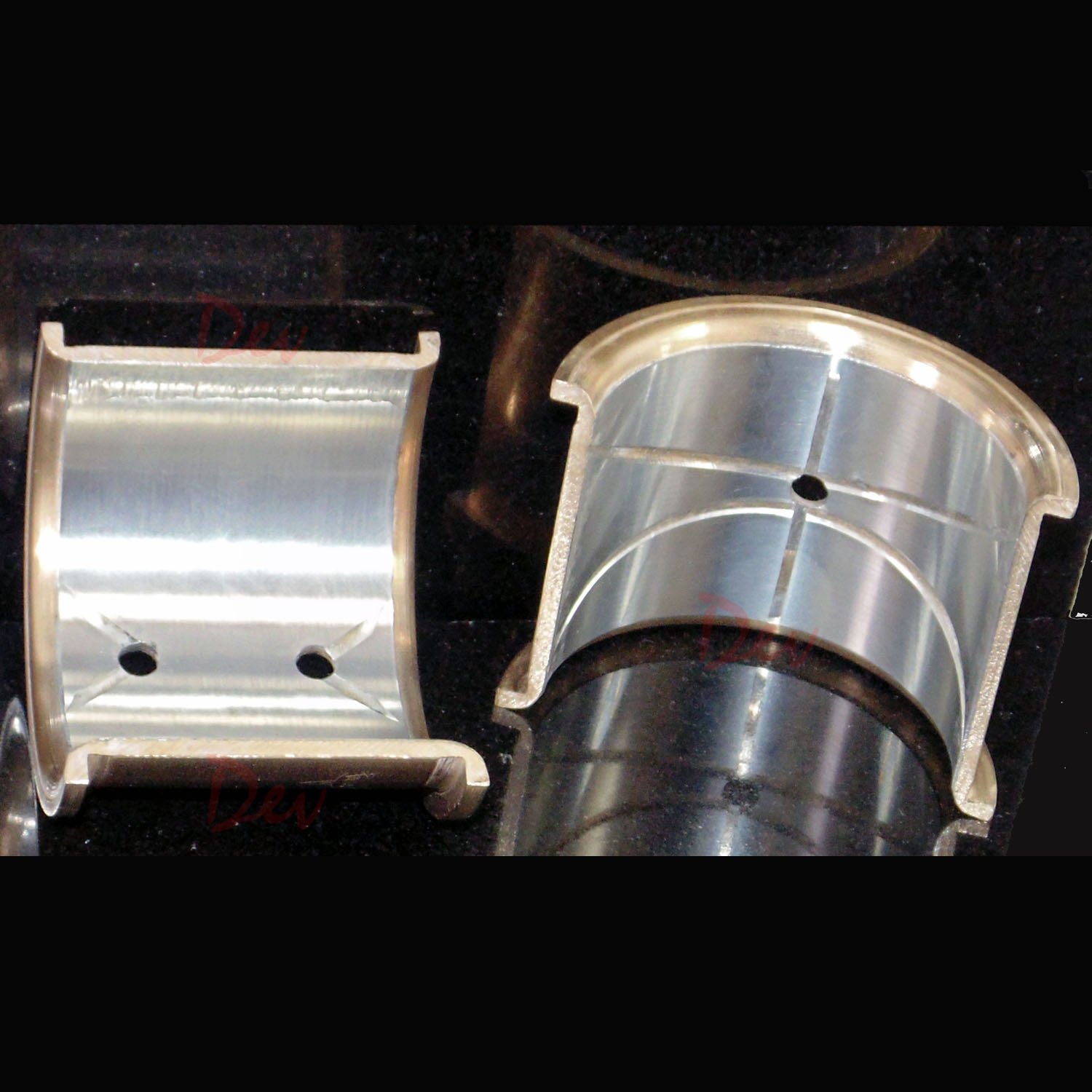

Lister CS Bronze Backed Big End Bearings

We offer new set of big end (connecting rod) bearing shells for the Lister CS type of diesel engine.

Unlike other bearings our bearings are made from High quality Bronze backing with Tin Based Babbitt Alloy SAE-12 lining & thus take higher load then other low quality alloy Bearings.

Our White Metal Bearings suitable for hardened or un-hardened crank shaft. These bearings are suitable for RA Lister 5/1, 6/1, 10/2, 12/2, 8/1, 16/2, 5-1, 6-1, 10-2, 12-2, 8-1, 16-2 also Start-O-Matic and all the CS engines fitted with the heavy kidney holed flywheels. Also Suitable for Indian Listeroid 5 HP, 6 HP, 8HP, 10 HP, 12 HP, 16 HP

$30.00 – $35.00

Bulk Discount

Buy more and get Discounts up to 20%

Product Description

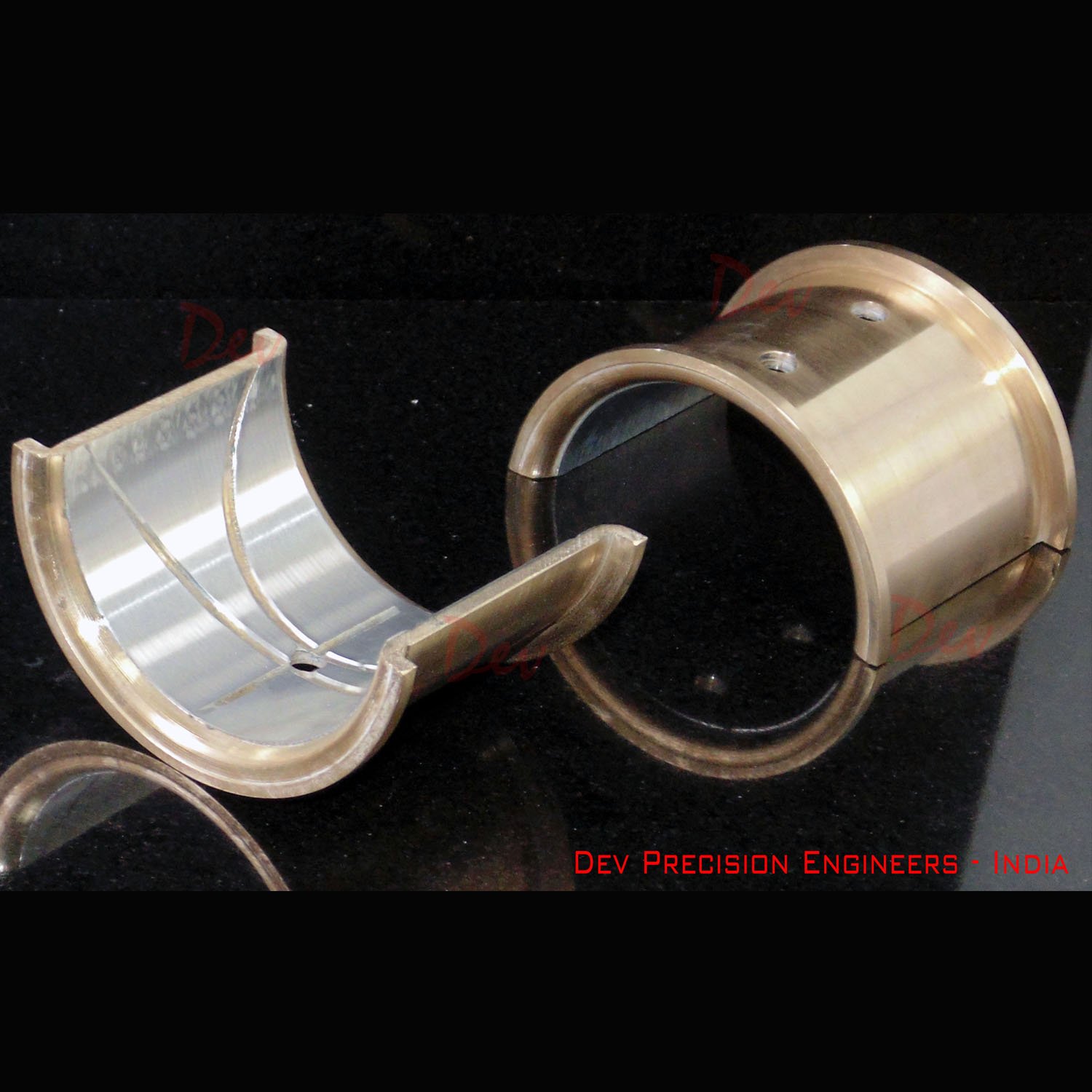

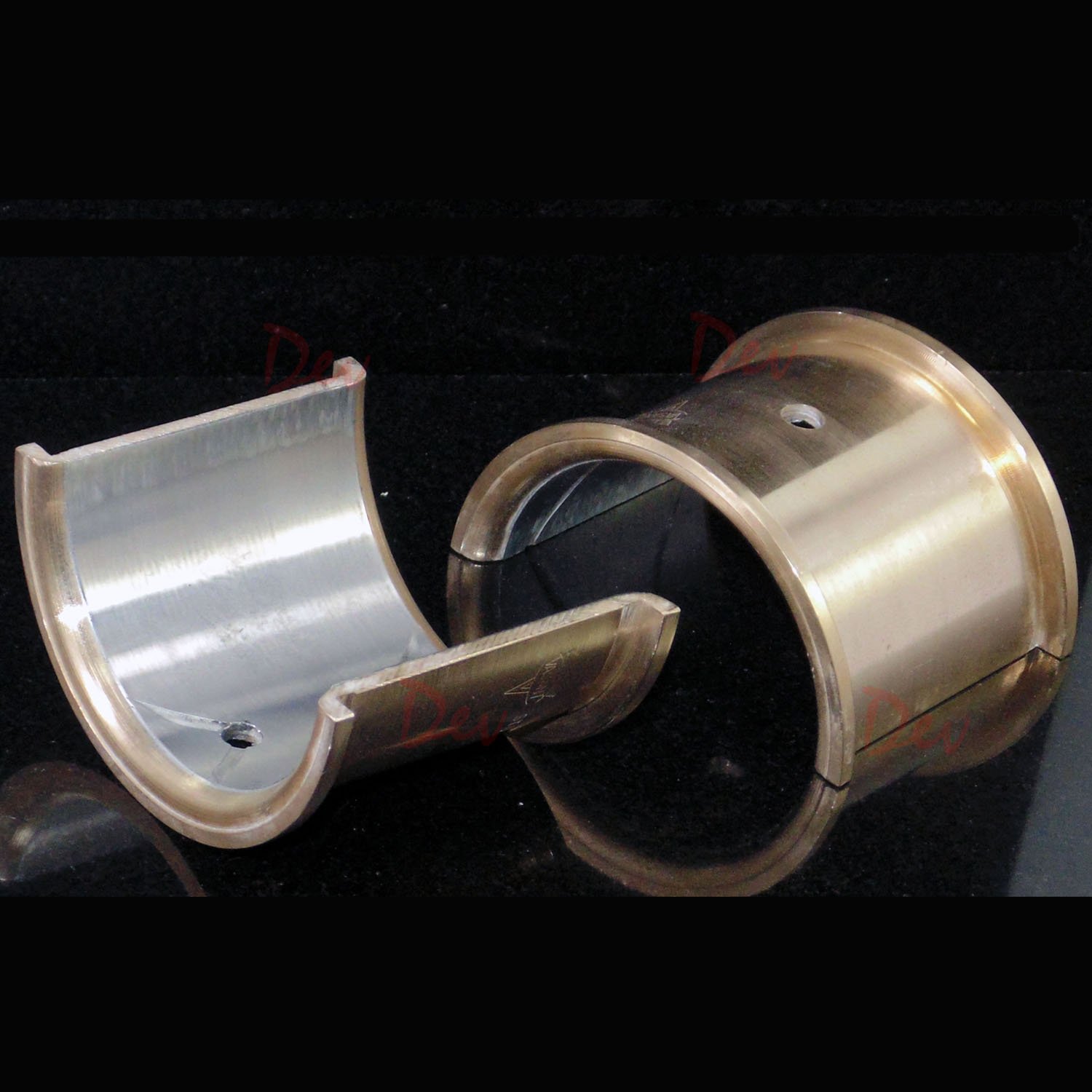

Lister CS Bronze Backed Big End Bearings Part No DEV 574-10320 comprising PN DEV 8-4-26 & DEV 5-1/D19.

Standard connecting Rod (Con. Rod) Bearing for the 2.5″ or 63.50 mm Shaft Dia.

High quality Bronze backing with Tin Based Babbitt Alloy SAE-12 lining.

Supplied Shim set Free with every order of Big End Bearings.

Lister CS 5/1, 6/1, 8/1, 10/2, 12/2 and 16/2 Engine Big End Bearing.

Many sizes are available, standard for a 2.5' crankpin and then in 0.010" increments for those who need to compensate for a worn crankpin after a re-grind. We can supply following bearings sizes Under size (Over Size) - 010, 020, 030, 040, 050, 060, 070, 080, 090, 100, 110, 120

Weight	.45 kg
Dimensions	14 × 14 × 9 cm
Sizes	Standard, 010", 020", 030", 040"
